BigTreeTech EBB Gen 2 Toolhead Boards

Documentation for the BTT EBB Gen 2 toolhead boards.

On this page

The BigTreeTech EBB Gen 2 series (EBB36 and EBB42) are compact CAN bus toolhead boards commonly used in Voron and other high-performance 3D printers.
This page consolidates all setup, firmware flashing, wiring, and configuration.

Overview#

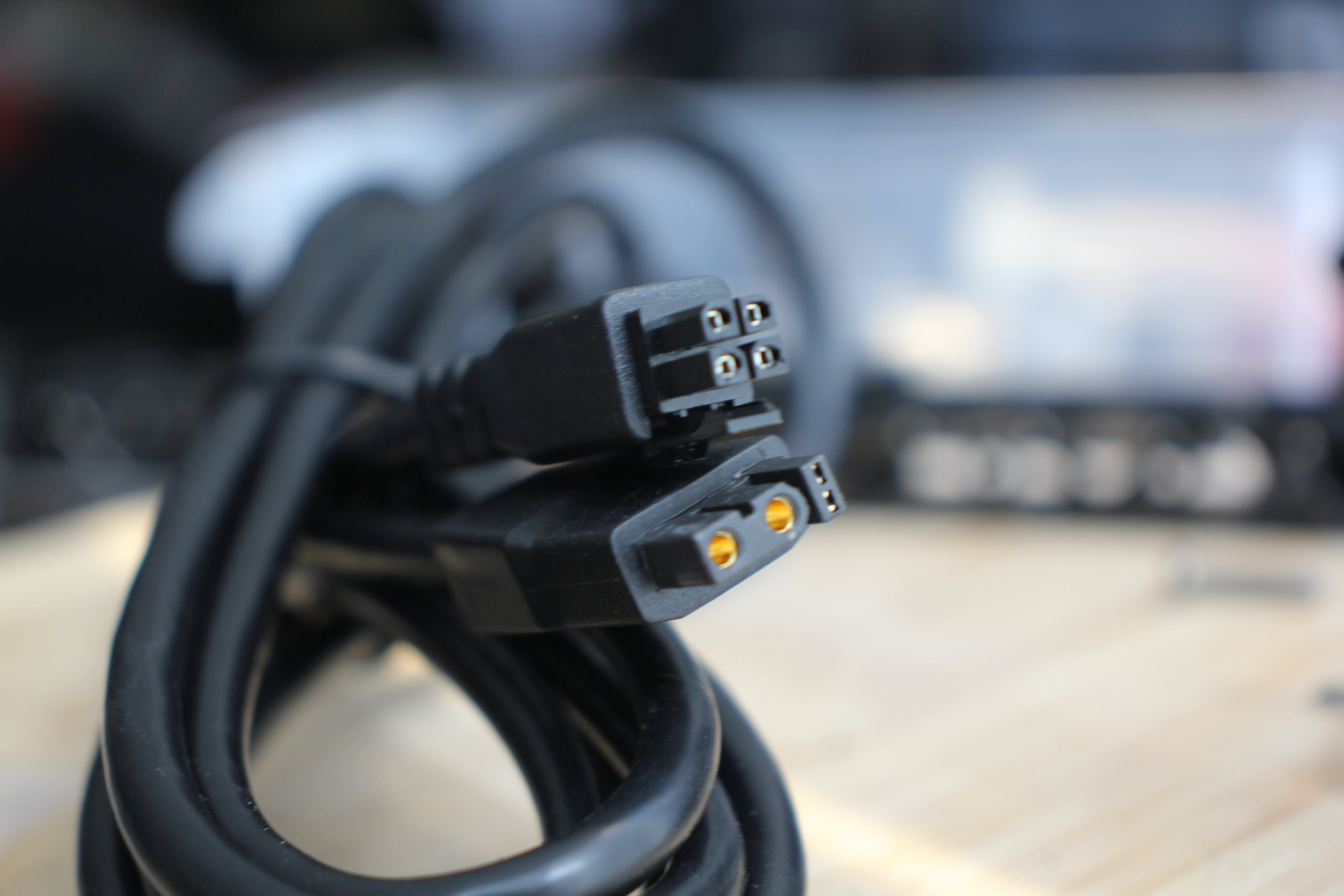

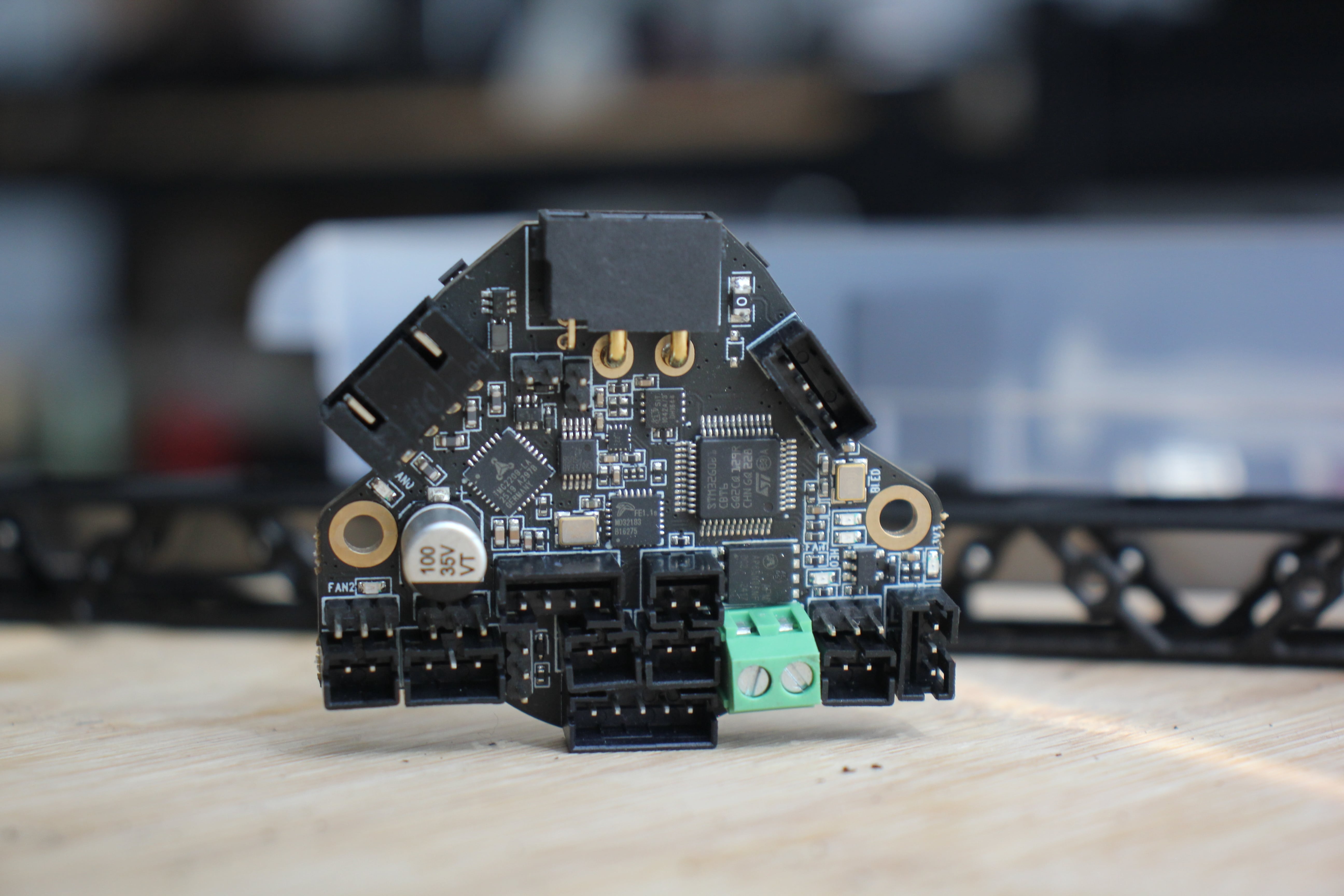

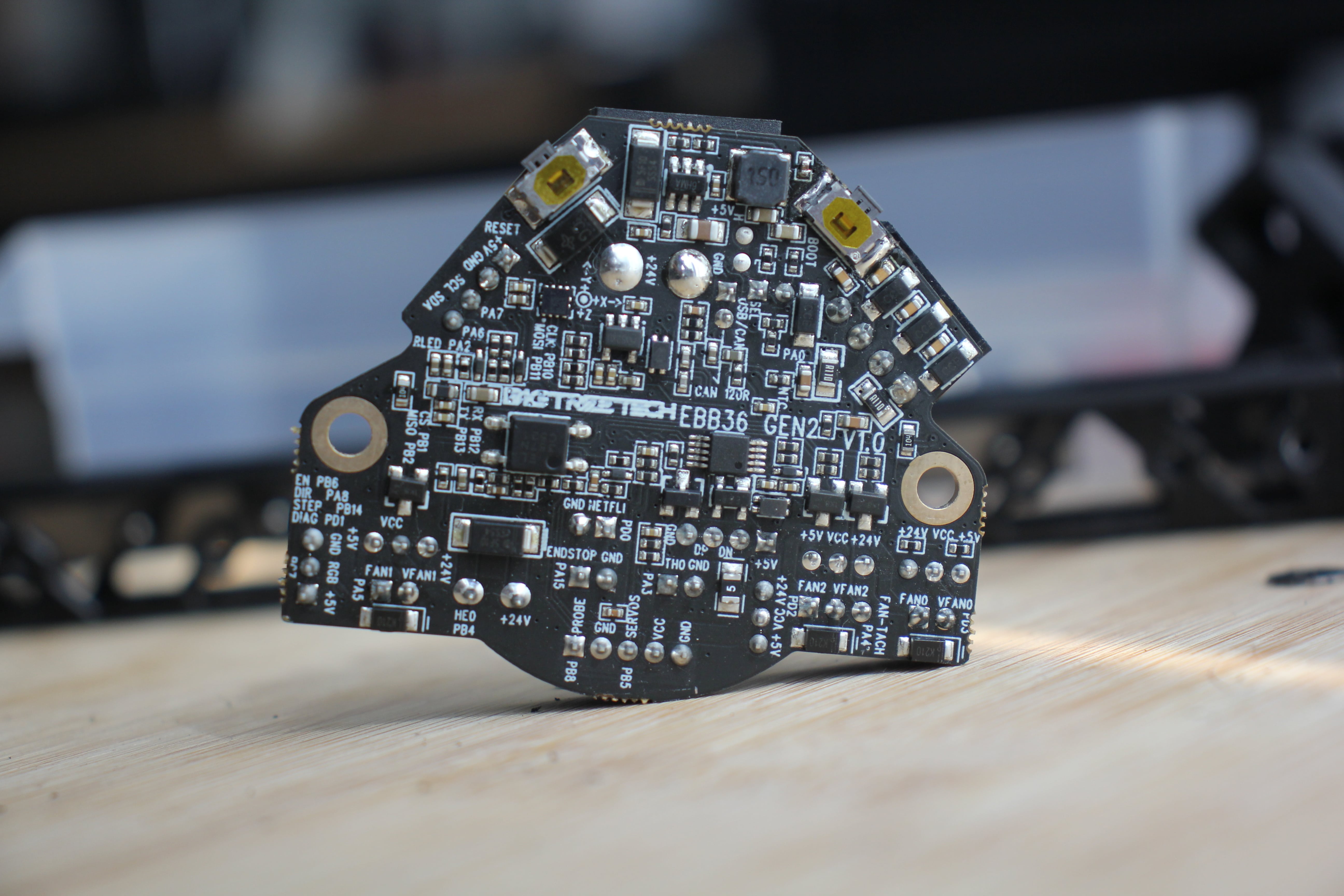

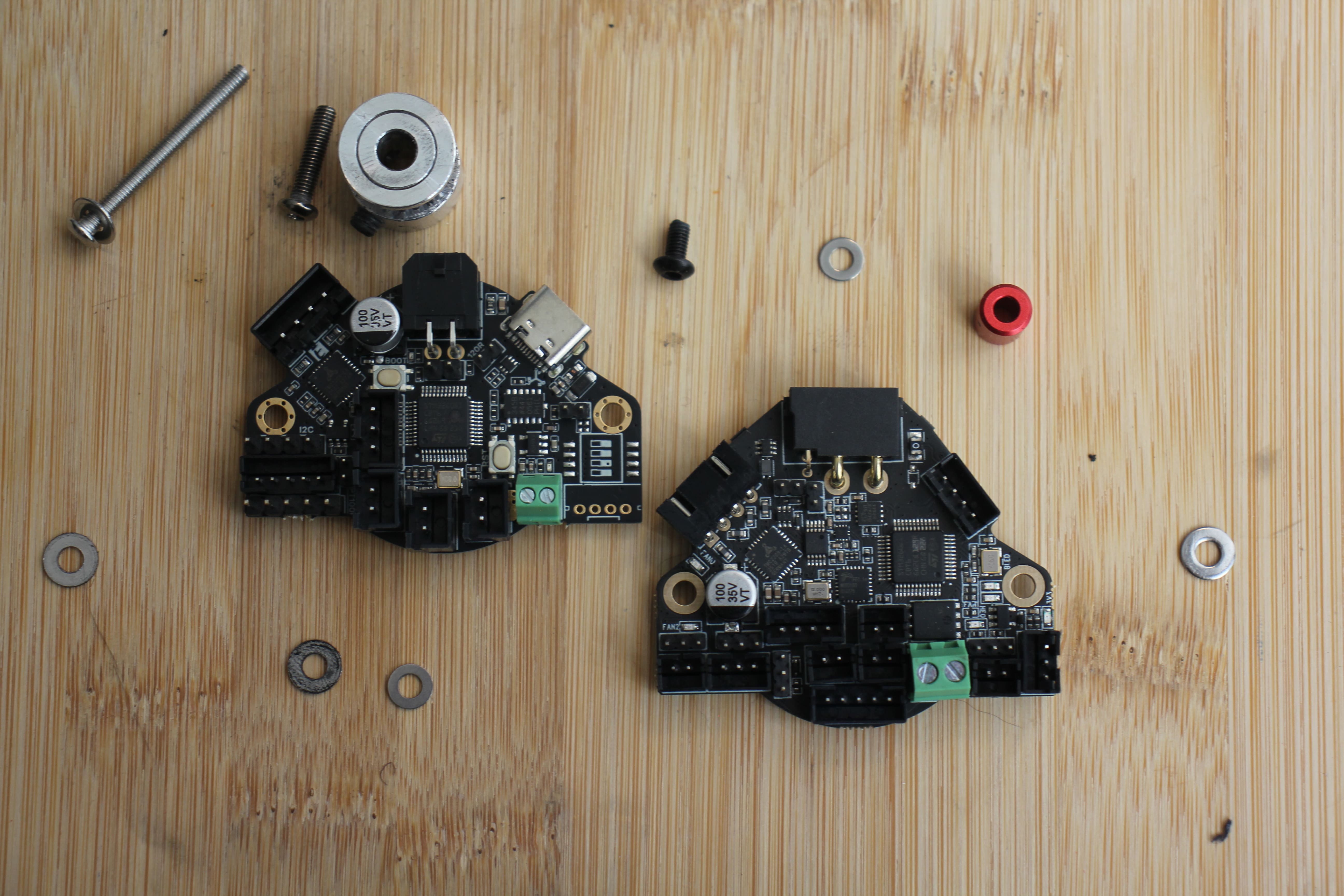

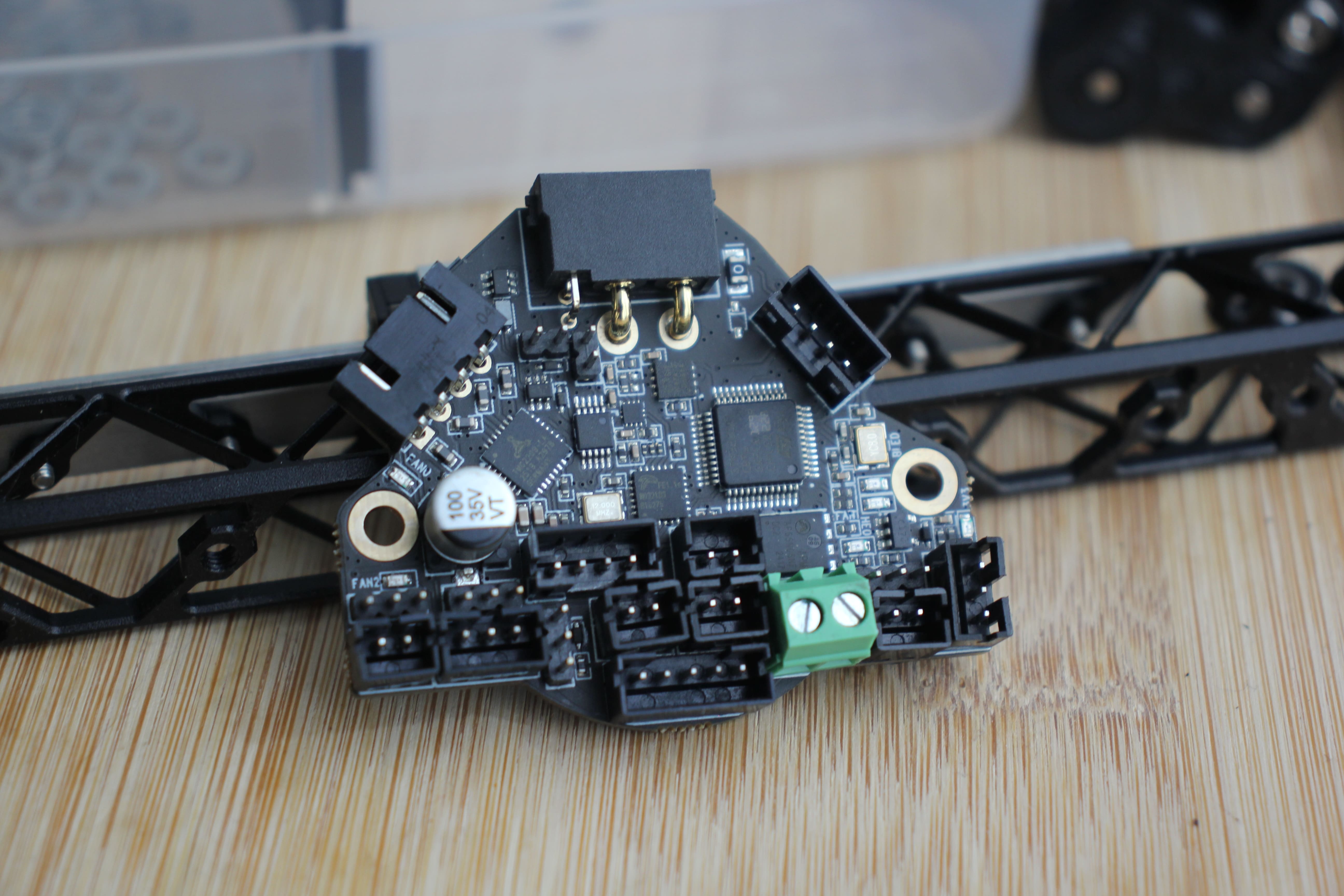

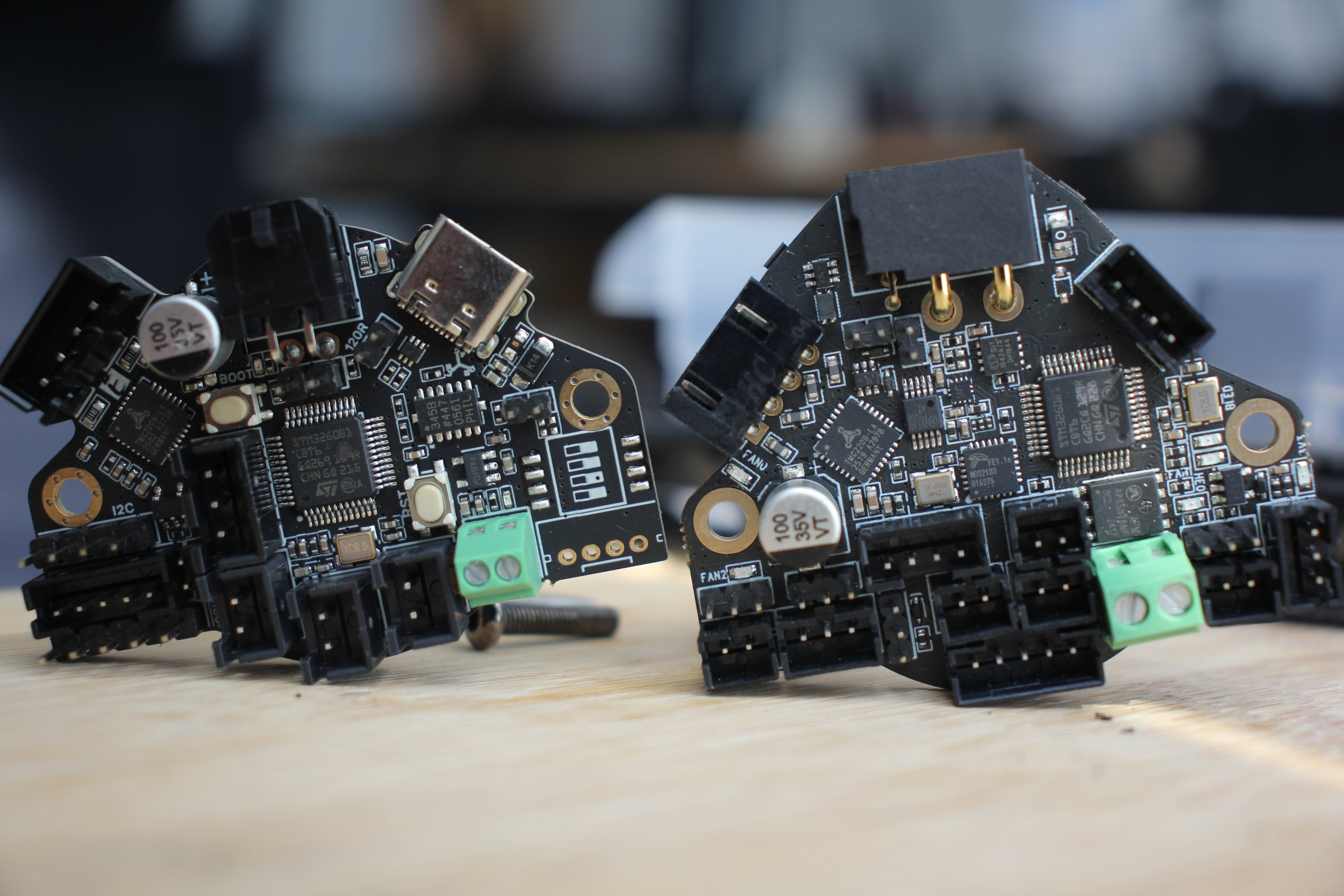

EBB36 GEN2 V1.0

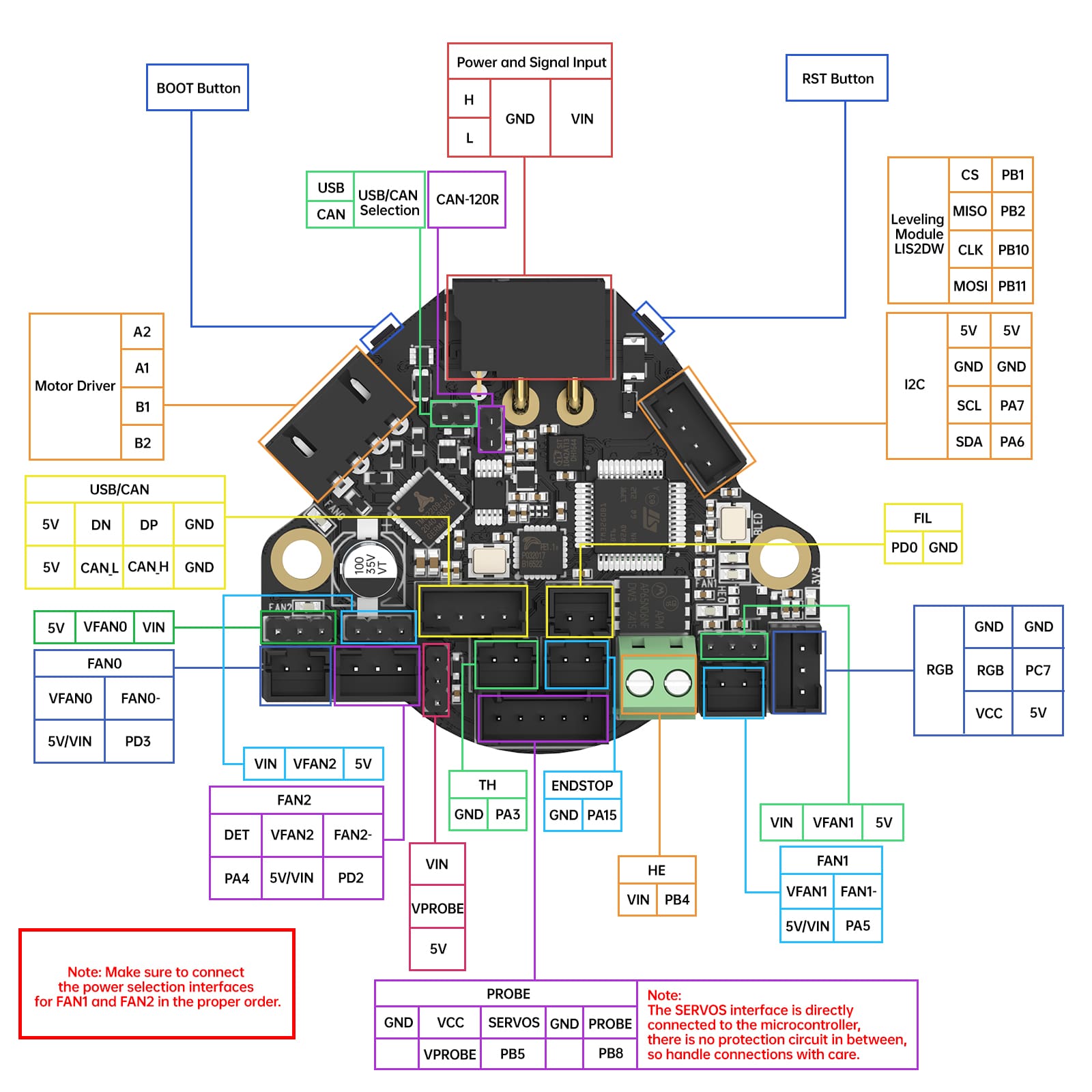

EBB36 pinout picture

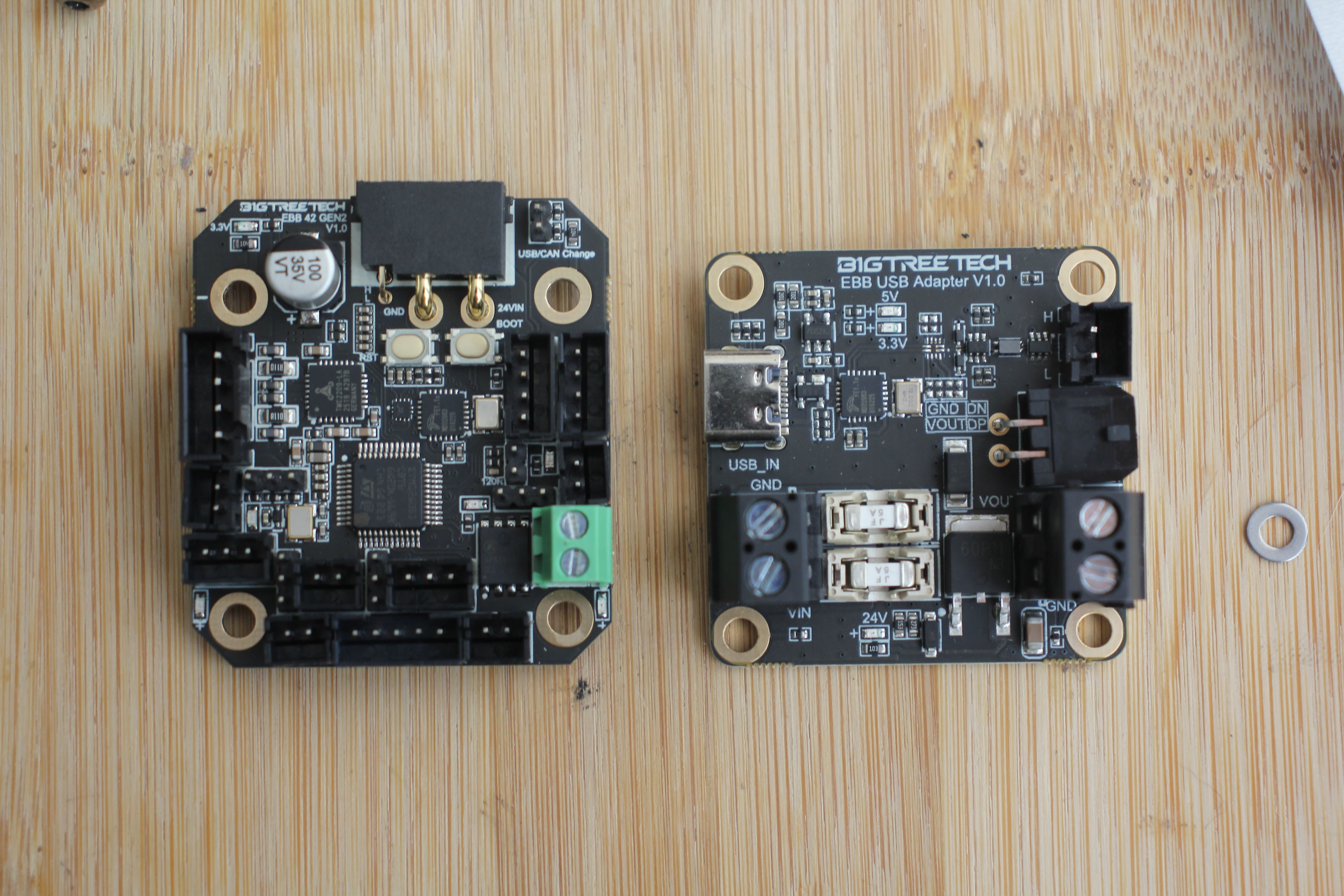

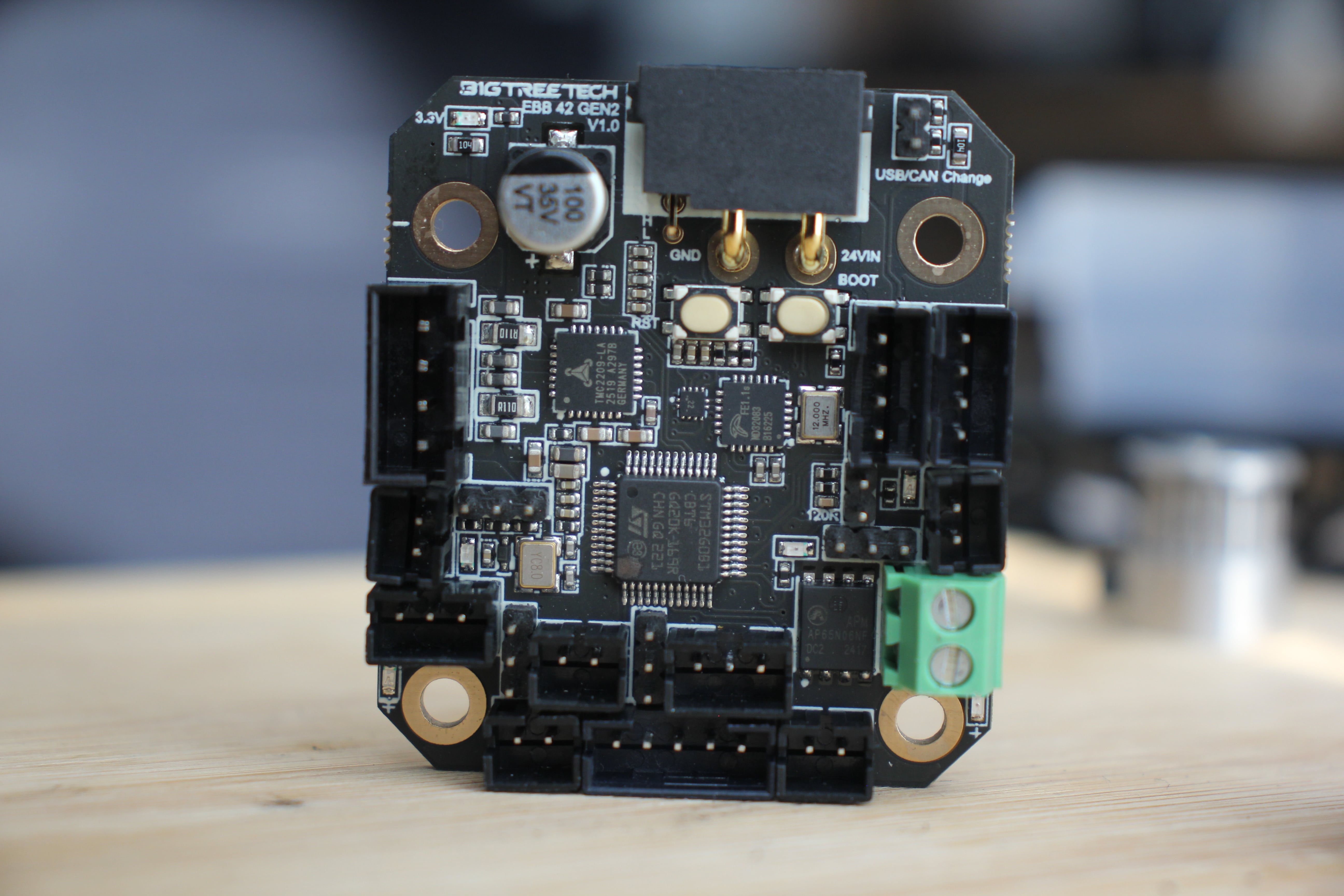

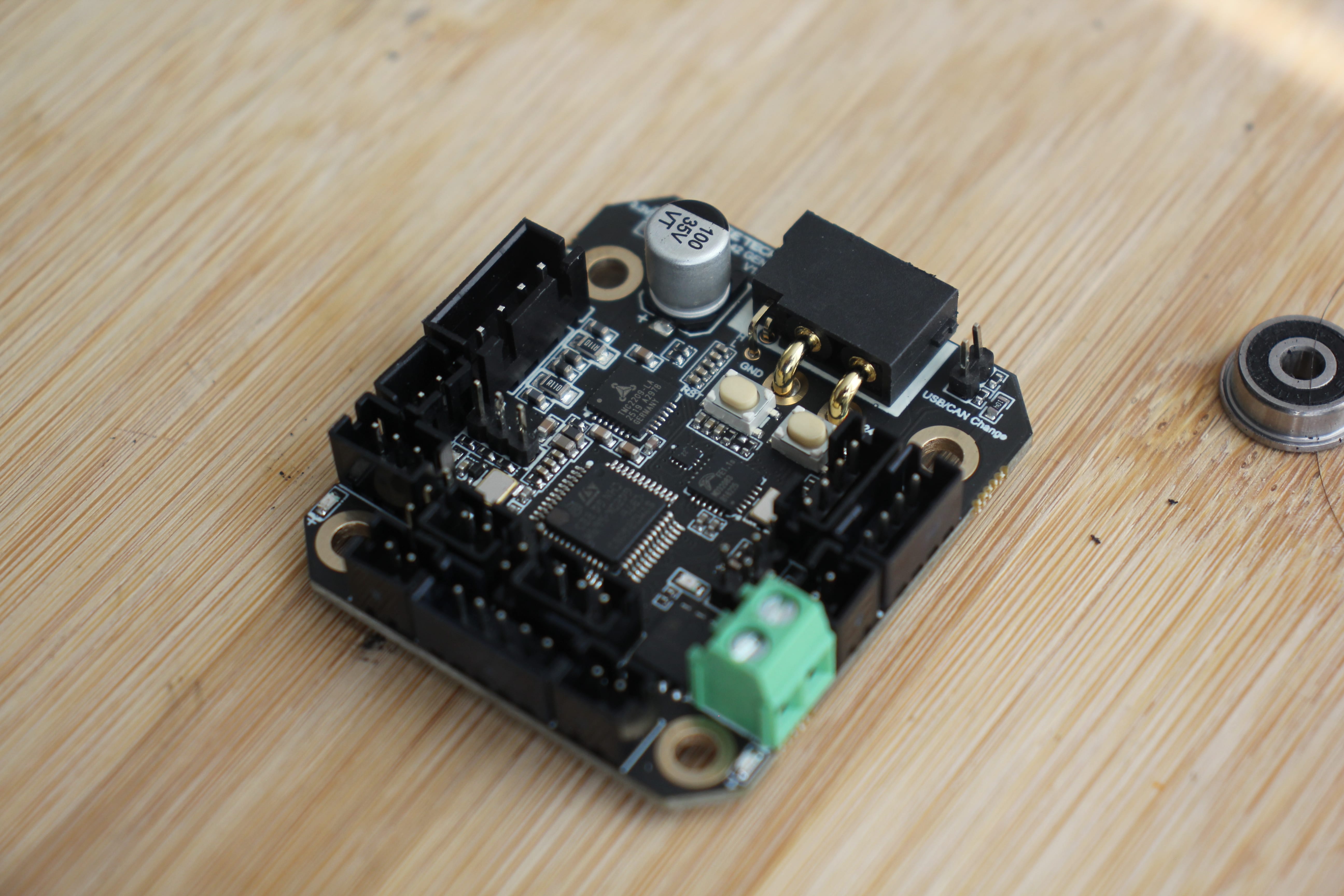

EBB42 GEN2 V1.0

EBB42 pinout picture

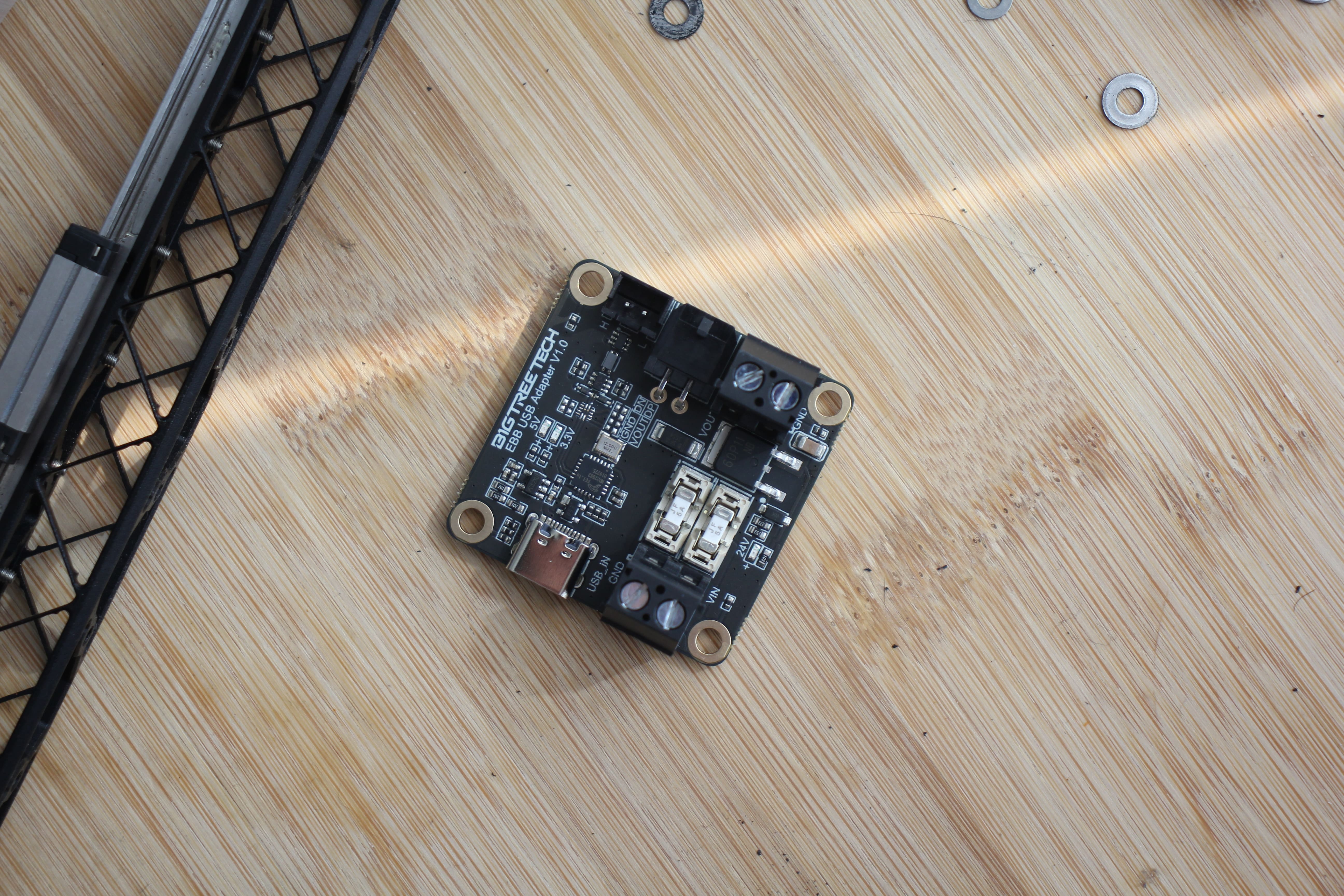

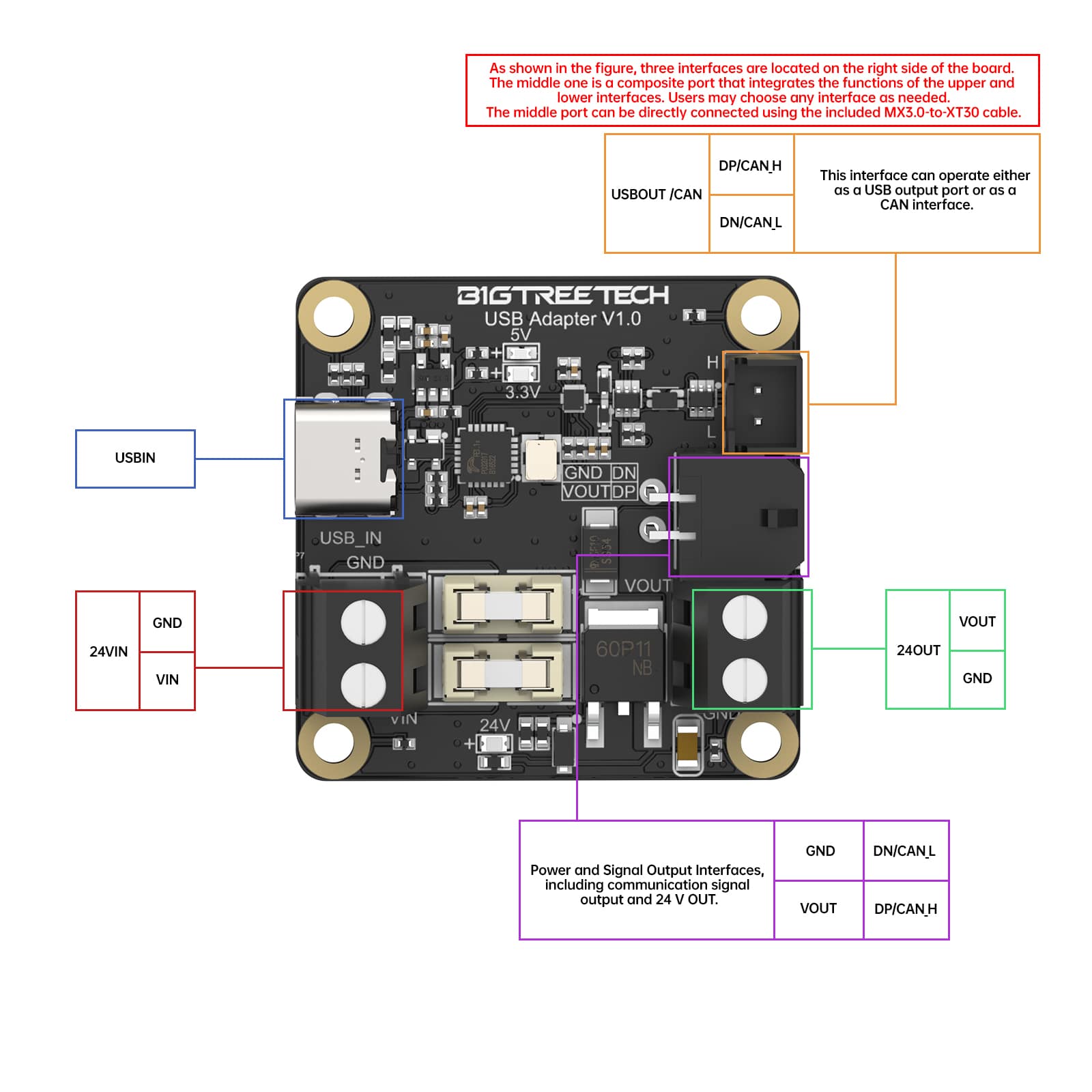

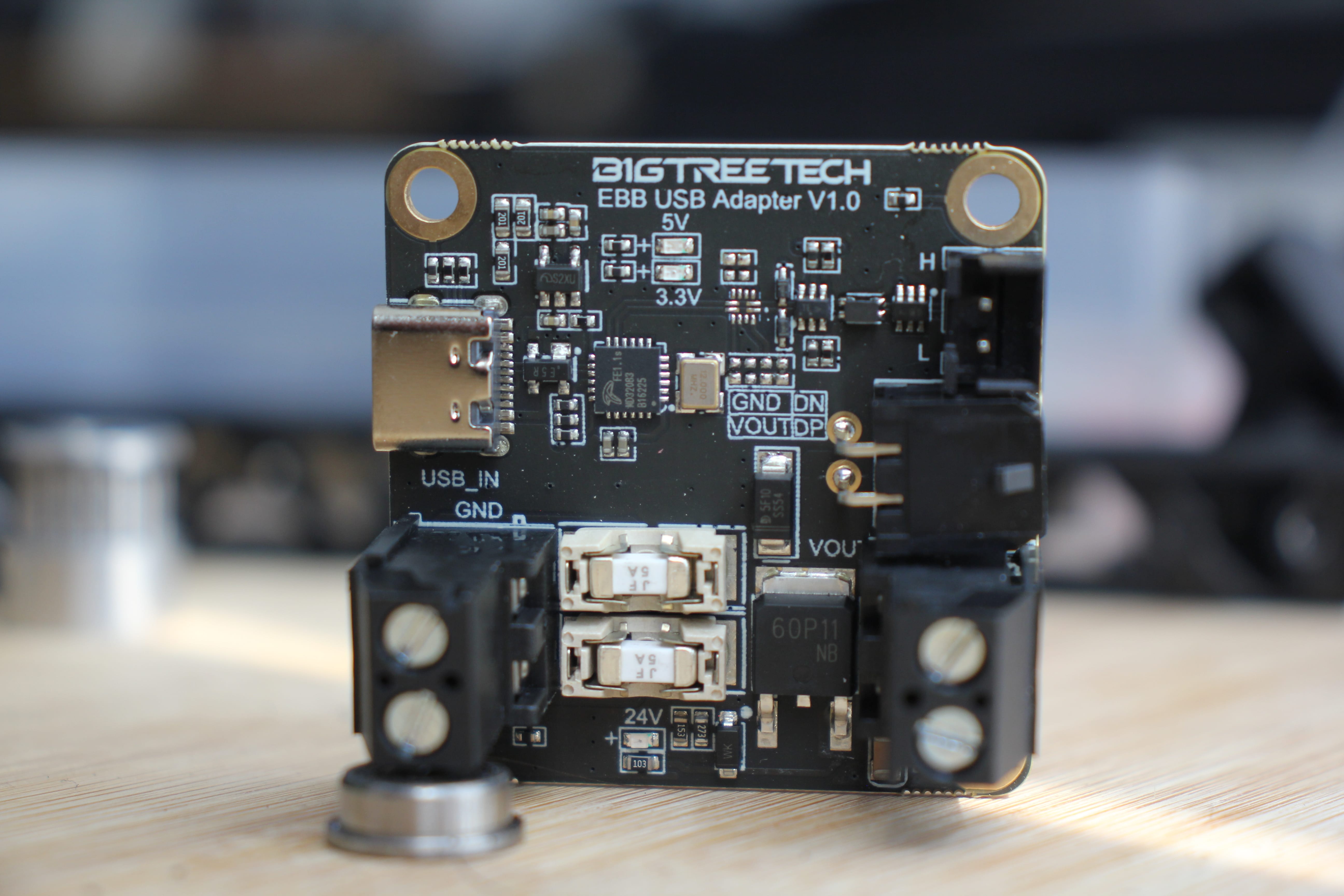

USB Adapter V1.0

USB pinout picture

Features#

  • Extensive protection on nearly every input and output to reduce the risk of accidental wiring damage.
  • Simple communication selection via a single jumper, with the passthrough port automatically adapting to USB or CAN mode.
  • Enhanced USB stability through onboard signal conditioning hardware.
  • Rated for high-temperature environments, with verified operation in chambers up to 75 °C
    (active cooling recommended above 60 °C).
  • 3-pin tacho fan support for detecting hotend fan failure.
  • Selectable 5 V or 24 V output for all fan ports using onboard jumpers.
  • Built-in I²C header for environmental sensors, eddy probes, and auxiliary devices.
  • Dedicated thermistor input for monitoring motor driver temperature.
  • Three PWM-controlled fan outputs, each protected against short-circuit and thermal overload.
  • Reset and boot buttons placed for easy toolhead access.
  • Powered by an ARM Cortex-M0+ STM32G0B1CBT6 running at 64 MHz.
  • Ground-referenced mounting holes designed to dissipate static buildup and reduce ESD impact.

Specifications#

  • Product Name: BIGTREETECH EBB36 / EBB42 GEN2 V1.0
  • MCU: ARM Cortex-M0+ STM32G0B1CBT6 @ 64 MHz
  • Input Voltage: 24–28 V DC
  • Logic Voltage: 3.3 V
  • Heater Output: Up to 120 W (24 V / 5 A)
  • Thermistor Support: PT1000 or standard NTC
  • Fan Outputs:
    • 2 × 2-pin PWM fans (FAN0, FAN1)
    • 1 × 3-pin PWM+tacho fan (FAN2)
  • Fan Current Rating: 1 A total continuous, 1.5 A peak
  • Fan Protection: Over-current and over-temperature protection on all ports
  • 5 V Rail Output: Up to 1.5 A peak
  • Expansion Ports:
    • Multiplexed probe interface (MicroProbe, BLTouch, 24 V inductive probes)
    • RGB output
    • Thermistor (TH)
    • Motor driver (TMC2209 onboard)
    • USB / CAN-FD communication ports
    • Additional I/O breakouts depending on configuration

Installation

note

This Section is a work in progress, our team is currently testing the ebb gen 2 series of boards and will make sure to up date the installation and setup process as soon as it is ready.

Klipper Configuration Example

EBB36 GEN2 V1.0

This file contains common pin mappings for the BIGTREETECH EBB36

GEN2 board. To use this config, the firmware should be compiled for the

STM32G0B1 with “8 MHz crystal” and “USB (on PA11/PA12)” or “CAN bus (on PB12/PB13)” .

The “EBB36 GEN2” micro-controller will be used to control the components on the nozzle.

See docs/Config_Reference.md for a description of parameters.

[mcu EBB] serial: /dev/serial/by-id/usb-Klipper_Klipper_firmware_12345-if00 #canbus_uuid=a62a88bb28e3

[temperature_sensor EBB36] sensor_type: Generic 3950 sensor_pin: EBB

pullup_resistor: 2200

[lis2dw] cs_pin: EBB

spi_bus
axes_map: x,y,z

[extruder] step_pin: EBB

dir_pin: EBB
enable_pin: !EBB
microsteps: 16 rotation_distance: 33.500 nozzle_diameter: 0.400 filament_diameter: 1.750 heater_pin: EBB
sensor_type: EPCOS 100K B57560G104F pullup_resistor: 2200 sensor_pin: EBB
control: pid pid_Kp: 21.527 pid_Ki: 1.063 pid_Kd: 108.982 min_temp: 0 max_temp: 250

[tmc2209 extruder] uart_pin: EBB

run_current: 0.650 stealthchop_threshold: 999999

#[filament_switch_sensor fil_det] #switch_pin: EBB

[fan] pin: EBB

[heater_fan hotend_fan] pin: EBB

heater: extruder heater_temp: 50.0

#[heater_fan 3w_fan2] #pin: EBB

#tachometer_pin: EBB

#[neopixel hotend_rgb] #pin: EBB

#[bltouch] #sensor_pin: ^!EBB

#control_pin: EBB

#[output_pin rled] #pin:EBB

#[temperature_sensor BME280] #sensor_type: BME280 #i2c_mcu: EBB ##i2c_bus: i2c3_PA7_PA6 #i2c_software_scl_pin: EBB

#i2c_software_sda_pin: EBB

#endstop_pin: EBB

#diag_pin: ^EBB

EBB42 GEN2 V1.0

This file contains common pin mappings for the BIGTREETECH EBB42

GEN2 board. To use this config, the firmware should be compiled for the

STM32G0B1 with “8 MHz crystal” and “USB (on PA11/PA12)” or “CAN bus (on PB12/PB13)” .

The “EBB42 GEN2” micro-controller will be used to control the components on the nozzle.

See docs/Config_Reference.md for a description of parameters.

[mcu EBB] serial: /dev/serial/by-id/usb-Klipper_Klipper_firmware_12345-if00 #canbus_uuid=a62a88bb28e3

[temperature_sensor EBB42] sensor_type: Generic 3950 sensor_pin: EBB

pullup_resistor: 2200

[lis2dw] cs_pin: EBB

spi_bus
axes_map: x,y,z

[extruder] step_pin: EBB

dir_pin: EBB
enable_pin: !EBB
microsteps: 16 rotation_distance: 33.500 nozzle_diameter: 0.400 filament_diameter: 1.750 heater_pin: EBB
sensor_type: EPCOS 100K B57560G104F pullup_resistor: 2200 sensor_pin: EBB
control: pid pid_Kp: 21.527 pid_Ki: 1.063 pid_Kd: 108.982 min_temp: 0 max_temp: 250

[tmc2209 extruder] uart_pin: EBB

run_current: 0.650 stealthchop_threshold: 999999

#[filament_switch_sensor fil_det] #switch_pin: EBB

[fan] pin: EBB

[heater_fan hotend_fan] pin: EBB

heater: extruder heater_temp: 50.0

#[heater_fan 3w_fan2] #pin: EBB

#tachometer_pin: EBB

#[neopixel hotend_rgb] #pin: EBB

#[bltouch] #sensor_pin: ^!EBB

#control_pin: EBB

#[output_pin rled] #pin:EBB

#[temperature_sensor BME280] #sensor_type: BME280 #i2c_mcu: EBB ##i2c_bus: i2c1_PA9_PA10 #i2c_software_scl_pin: EBB

#i2c_software_sda_pin: EBB

#endstop_pin: EBB

#diag_pin: ^EBB
