Voron Printers¶
Overview¶
Voron Design offers a range of high-performance 3D printers, each designed for specific use cases and requirements. This guide covers the official Voron printer models, their features, applications, and notable community derivatives. Print speeds and acceleration have been removed as those are dependent on how well a voron is built.
Official Models¶
Voron V0.2r1¶
| Specification | Details |
|---|---|
| Type | Compact CoreXY |
| Build Volume | 120mm³ |
| Key Features | Small footprint, high-speed printing, CoreXY motion, fully enclosed, ideal for small parts and prototyping |
| Purchase Link | FormBot V0.2r1 kit |

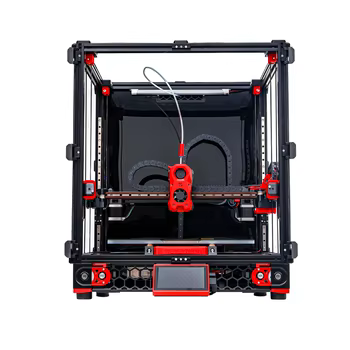

Voron V2.4¶
| Specification | Details |
|---|---|
| Type | Flagship CoreXY with flying gantry |
| Build Volume | 250mm³, 300mm³*, 350mm³* |
| Key Features | Flying gantry, CoreXY motion, advanced customization, input shaping ready, top performance |
| Purchase Link | FormBot V2.4 kit |

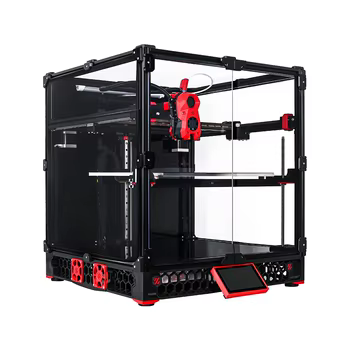

Voron Trident¶
| Specification | Details |
|---|---|
| Type | Fixed gantry CoreXY |
| Build Volume | 250mm³, 300mm³*, 350mm³* |
| Key Features | Fixed gantry for stability, CoreXY, three-point Z leveling, excellent print quality, simplified maintenance |
| Purchase Link | FormBot Trident kit |
Voron Switchwire¶
| Specification | Details |
|---|---|
| Type | Bed Slinger |
| Build Volume | 235mm³ |
| Key Features | CoreXZ motion, compact design, direct drive extruder, fully enclosed, great Voron entry point |
NonVoron Printers¶
note
This is not a statment of opinion or a comment about the quality of anything, this is simple to differentiate between printers that are from the Voron Design team who released the v2.4, v0 etc. There are other printers out there designed by different poeple and we wanted to make sure we could show those off aswell.
Specifications
| Specification | Details |
|---|---|
| Type | CoreXY |
| Build Volume | 185mm³ |
Features
- A smaller Voron 2.4
- Uses 1515 aluminum extrusions
- Flying gantry
- Fully enclosed
Links
Specifications
| Specification | Details |
|---|---|
| Type | CoreXY |
| Build Volume | 120x120x120 |
Features
- Based on Voron V0
- CoreXY motion
- 3 point bed tramming
- Enhanced functionality over original V0
Description
An enhanced variant of the Voron V0 design featuring CoreXY motion with automatic bed tramming capabilities.
Links
Specifications
| Specification | Details |
|---|---|
| Type | Core XY |
| Build Volume | 180x180x180 |
Features
Enhanced variant of the Tri Zero design with additional improvements. Details coming soon.
Description
An upgraded version of the Tri Zero with enhanced functionality and features.
Links
| Specification | Details |
|---|---|
| Type | CoreXY |
| Build Volume | 120mm³, 150mm³, 180mm³ |
Features
- 3-point bed tilt
- Supports multiple probes
- Supports multiple toolheads
Description
Take a Voron Trident, swap 2020 extrusions for 1515 extrusions for a minified design, creating a compact CoreXY printer with excellent print quality.
Links

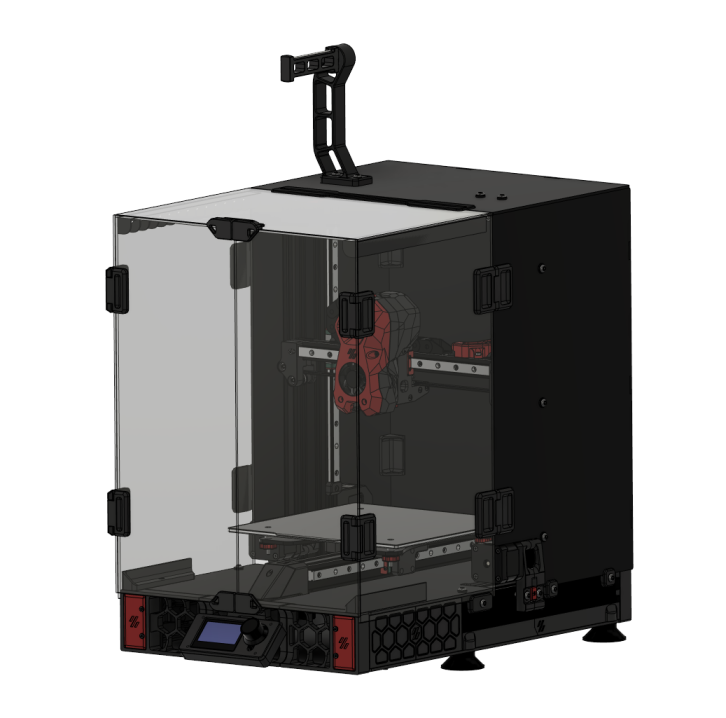

Specifications
| Specification | Details |
|---|---|
| Type | CoreXZ Conversion |
| Build Volume | 235mm³ (220mm*) |
Features
- Ender 3 conversion
- CoreXZ motion
- Fully enclosed
- Cost-effective upgrade
- Active community
### Links
Sovol Printers¶
Specifications
| Specification | Details |
|---|---|
| Type | CoreXY |
| Build Volume | 350x350x345mm |
Features
- Based on Voron V2.4
- CoreXY motion
- Can be Fully enclosed
- Commercial availability
Specifications
| Specification | Details |
|---|---|
| Type | Legacy CoreXY |
| Build Volume | 250mm³ |
Features
- Original Voron design
- CoreXY motion
- Community support
- Historical significance
Description
The original Voron design with CoreXY motion, representing the heritage of the Voron project with strong community support and historical importance to the 3D printing community.
Links
